Movable Glass Walls
GLAZED SYSTEMS divide the working area, while continuing to provide the impression of space and are an increasingly popular and attractive solution.
We can incorporate glazing / vision panels into all our systems, although there will be a requirement for a perimeter frame on the Acoustic / Multifold ranges. With the concertina product we install a section of clear vinyl.

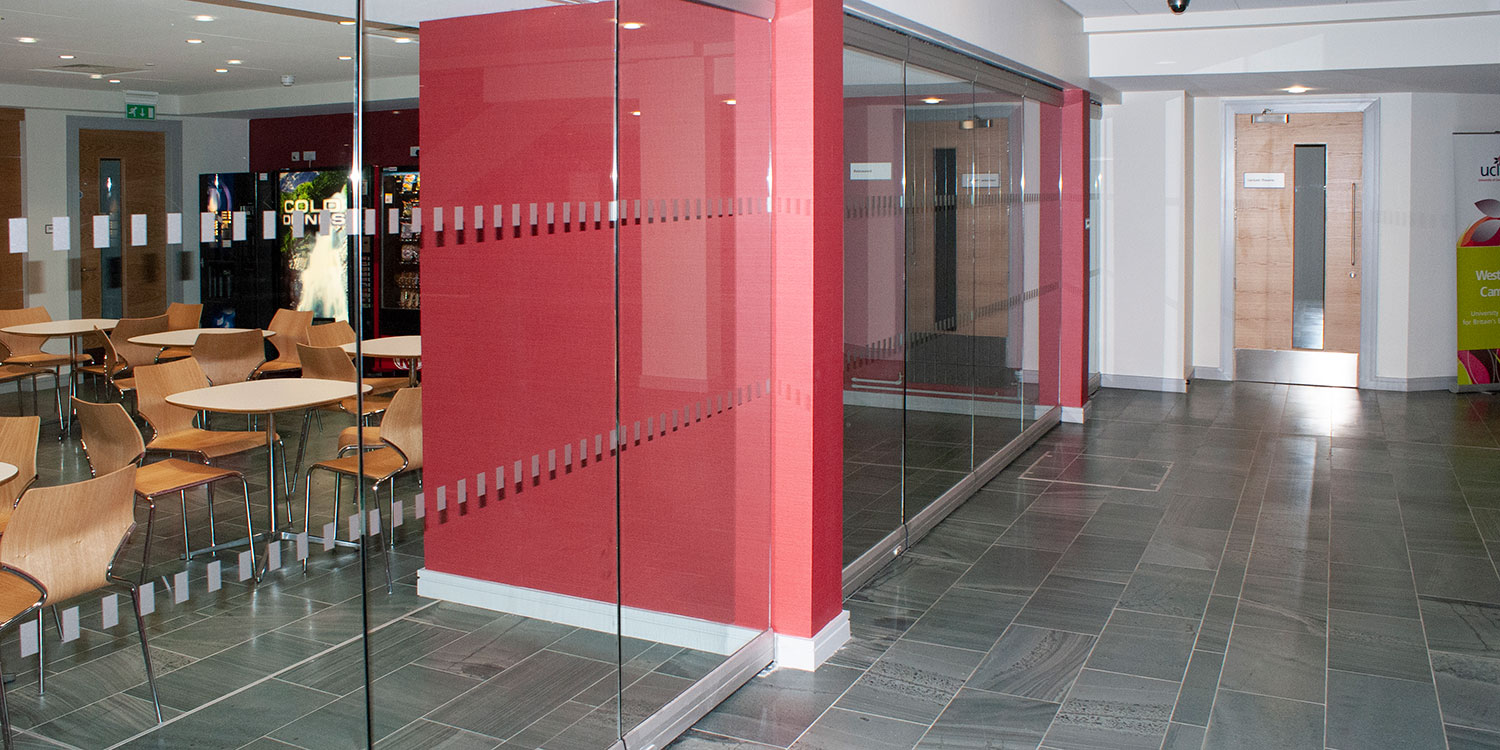

However, we also offer the GS35 fully glazed system that is a fresh, modern and exciting way of providing effective space division without visually sectioning off areas.
This system comprises individual panels suspended from a top track, secured via integrated floor bolts meaning that no floor track is required.
The GS35 is a single glazed system with aluminium rails to the top and bottom of each panel. The last panel usually being a full height swing door. This can be secured by ‘patch’ fittings to suit the design requirements.
Manifestations to the glass to suit current Building Regulations or art designs such as company logos can be applied to the glass.
- 35 mm system
- Manual operation
- Full height pass door (or hinged closure section)
- Brush seal at top and bottom, although no seal between glass portion
- Integrated locking at base
- 10 or 12 mm toughened glazing
- Exposed base / head profile in Satin Anodised Aluminium
- One–carrier or Two-carrier systems
